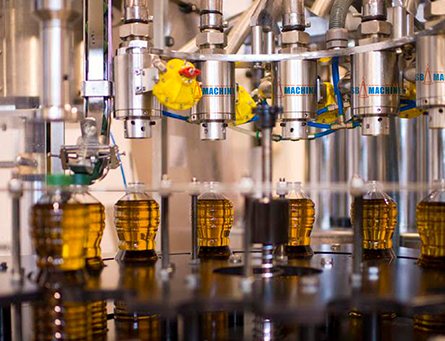

AUTOMATIC MONOBLOCK FILLING AND CAPPING MACHINE

Drink Filling Machine combines washing, filling and rotary capping function in one unit, it is a fully automatic and high effeciency liquid packing equipment. It is suitable for packing beverage containing gas. Its performance is as following:

All parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of food sanitation. Sealing parts are made of heat-proofing rubber, in order to

Features

  • All Operations through PLC with HMI (6X8) Make FUJI.
  • +/-1% Filling Accuracy due to Piston dozing Principle Operation.
  • Centralized Volume Adjustment System- No Down Tim in Volume Settings.
  • Automatic Volume Adjustment system with reference to the change of viscosity because of change of temperature through PLC and Servo Mechanizm.
  • Oil Level Controller and Pneumatically controlled product in feed valve.
  • 200 Liter oil tank with flushing valve.
  • No Container – No Filling Mechanism.
  • Container Jamming at Infeed or Out Feed – Machine Stop system.
  • Four Head Servo Filling with Individual Servo Motor (Make FUJI – 700V).
  • 4 Nos. of Gear pump Make Grund Foss.
  • 4 Nos. of Valve Make FETO or Equivalent.
  • 3 Nos. Air Cylinder Make FESTO.
  • 1 No. of Transfer Pump Make Grund Foss.
  • 12 Feet Conveyor with 8” Width.
  • 1.0 HP Motor for Filling Section.
  • 2 Nos. of AC Drive Make Delta.
  • Contactor Make – Synider.
  • Acrylic Cabinet to cover the machine.
  • Over all Dimension: 6 Feet Height/ 3.5 Feet Length and 12 Feet Conveyor.
  • Power : 2.0 HP.
  • Delrin Wheel to move the machine.
Automatic Monoblock Filling And Capping Machine

SPECIAL FEATURES

  • No Bottle - No Cap System.
  • No Cap - Machine Stop System.
  • Machine construction in Stainless Steel Finish.
  • Cap Feeder with Variable Speed System for feeding control of caps.
  • Hopper can be completely dismantle for easy cleaning.
  • Various safety features including Clutch system to avoid Bottle Breakage or Jamming.
  • Single Drive synchronizing operation of Conveyor and Star Wheel.
  • Minimum Change over time.

TECHNICAL SPECIFICATIONS

  • Bottle Diameter

    As per Samples Provided

  • Conveyour Height

    815mm to 850mm

  • Bottle Height

    As Per Samples Provided

  • Overall Dimension

    1500mm (L) x 735mm (W) x 1800mm (H)

  • Speed

    40 Per Minute Depends on Cap Size

  • Power

    1.0 HP

  • Scrw capping

    22mm, to 42mm as per Sample Provided with the help of Change Parts
